Available in multiple depths, this anti-tracking, anodised aluminium grate is ideal for multiple applications. With a Lifetime Rustproof Warranty and no bedding required, the NeXT Generation grates are an industry gamechanger.
- Any size from 900mm.

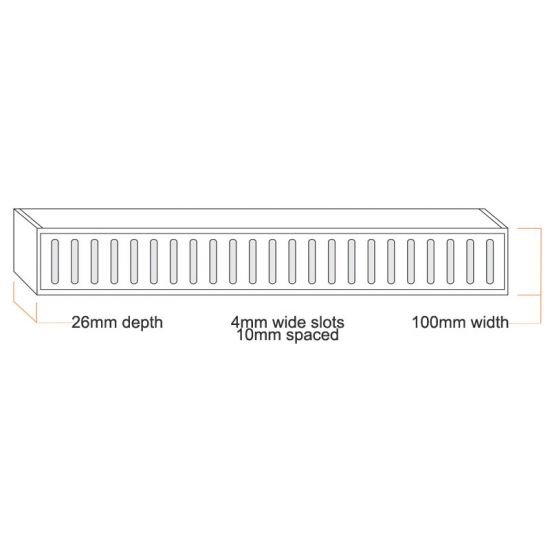

- (900-3000)mm long x 26mm deep x 100mm wide
- Color: Yellow Gold
- 4 Waste Sizes: 40/50/72/80mm
- No bedding required
- Recommended for indoor use
- Thick as tile and glue
- No tracking
Cutting & Assembly Instructions:
For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
- 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
- 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
- 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
- 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
- 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
